RIDGID STRUTSLAYR Strut Shear Head Kit

For 1-5/8" x 1-5/8" (41mm x 41mm) & 1-5/8" x 13/16" (41mm x 21mm)

The RIDGID® STRUTSLAYR™ delivers fab shop quality, burr-free strut channel cuts on the jobsite in 5 seconds or less. Compatible with RIDGID 32kN press tools, the STRUTSLAYR strut cutter offers a clean, consistent cut with a simple pull of a trigger: no grinding or sawing sparks! Press tools are not included. Not compatible with RIDGID 320-E or CT-400.

Features
Increased Efficiency
Clean, consistent cuts in 5 seconds or less
Safe Operation
No grinding or sawing sparks
Portable

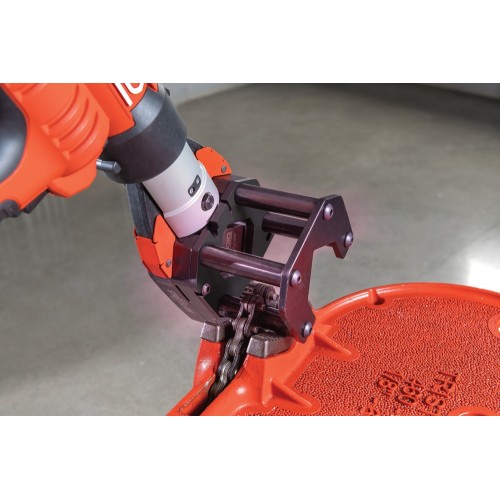

Easy to move around the job site and mounts to RIDGID TRISTANDs
Built-in Measuring Guide
Allows accuracy on the job site

Specifications
Cutting Capability Up to 12ga 1-5/8" x 1-5/8" (41mm x 41mm) or 1-5/8" x 13/16" (41mm x 21mm) (max. 2.5 mm wall-thickness). Not for use with Stainless Steel strut.
Weight of Head 12 lbs. (5.4 kg) (including dies, not including press tool)
Press Tool Compatibility RIDGID® Standard Series 32kN Press Tools (such as the RIDGID RP350, RP340, RP330)
Not for use with RIDGID 320-E and CT-400 Press Tools
Cut Squareness +/- 2° (strut must extend past strut support)
Shearing Dies 1-5/8" x 13/16" (41mm x 21mm) Dedicated Die
1-5/8"x 1-5/8" (41mm x 41mm) Dedicated Die

Available Options

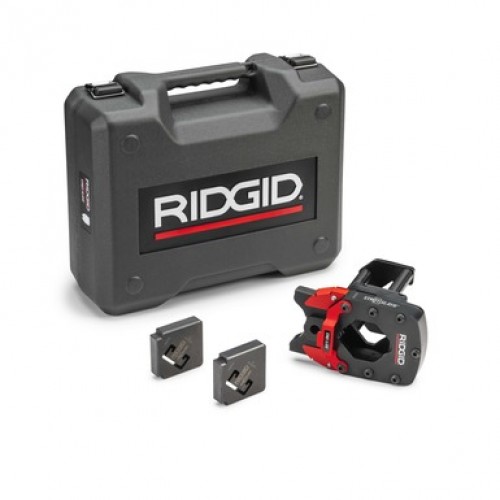

Part No: 411-64053 - Kit, Head & Case + 13/16" (41mm x 21mm) Die

Part No: 411-64058 - Kit, Head & Case + 1-5/8" (41mm x 41mm) Die
