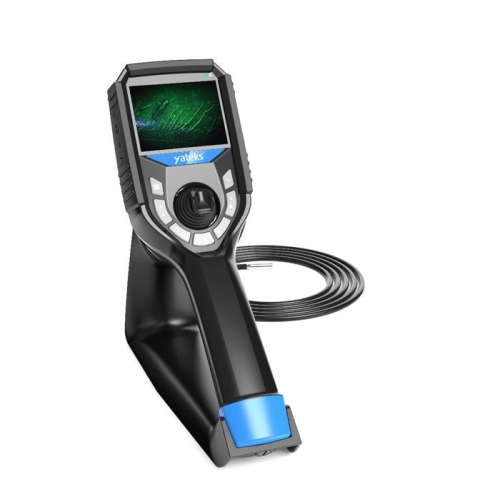

M-ADV Series Industrial UV Light Articulating Videoscope

Small Diameter (3.9mm & 6mm) 4-way Articulation Videoscopes

The M-ADV Series UV Articulating Videoscope uses the latest image processing technology to produce high resolution images using ultra bright lighting up to UV 40/60mW 365nm.

The 360° joystick provides excellent camera tip movement with the ability to understand where the camera head is when conducting an inspection. The Stainless Steel (316) Camera Head and four tungsten braided layers to the probe provide excellent wear resistance.

In the M-ADV Series the 3.9mm probes and the 6mm probes are only interchangeable with each other, they cannot be used with a 2.2mm or 2.8mm unit.

SPECIFICATIONS

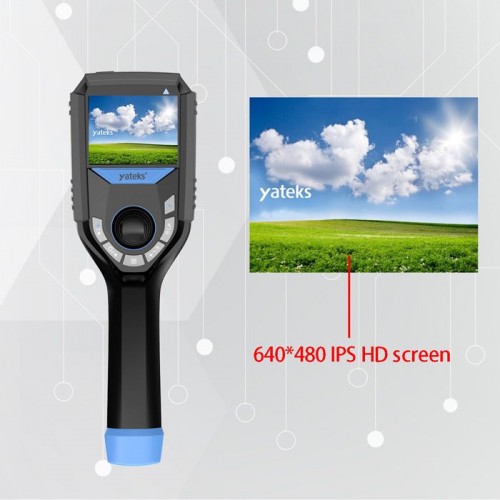

Screen High Brightness IPS 3.5" LCD
Screen Res 640 x 480
Tube Tungsten Braided Insertion Tube
Photo Format JPG, JPEG
Video Format AVI
Image Control Flip, Zoom in/out, screen frame, 180° mirror and flip
Zoom 4 x Digital Zoom
Working Temperature -20° to +50°
Ports HDMI, Micro USB, Headset interface
Image effects Normal, black and white, negative
White balance Automatic white balance, manual white balance
Joystick control Mechanical rocker 360° articulation
Automatic lock Automatic locking
Functions Photo, video, brightness adjustment, menu, picture zoom in/out, picture freeze, picture flip
Audio Integrated 3.5mm headset（optional)
Memory 16G (Max 128GB)
Battery 18650 battery*1(replaceable)
Standby time ≥4h
Operation method Hand-held portable
Brightness control 6-level brightness adjustment
Illuminance 40/60mW 365nm
Lens steering 360° mechanical arbitrary direction
Bending angle ≤1 (m), 150±10°; 2 (m)≥length＞1 (m),140±10°
Effective Pixels 450,000
AOV 120°
Software Operation system Real-time multitasking operation system
User interface Drop-down operation menu
File management Photo/video playback, deletion, formatting
Language English/Chinese/Japanese/German/Spanish/French/Korean
Relative humidity Highest 90%, no condensation
Waterproof Base unit IP54/video probe IP67

Available Options (Select from Drop Down Menu above)

Part No: 525-11230010 - 2.8mm dia x 1m, DoF 3-50mm, FoV 120°, UV 35mW, 365nm

Part No: 525-11230015 - 2.8mm dia x 1.5m, DoF 3-50mm, FoV 120°, UV 35mW, 365nm

Part No: 525-11230020 - 2.8mm dia x 2m, DoF 3-50mm, FoV 120°, UV 35mW, 365nm
