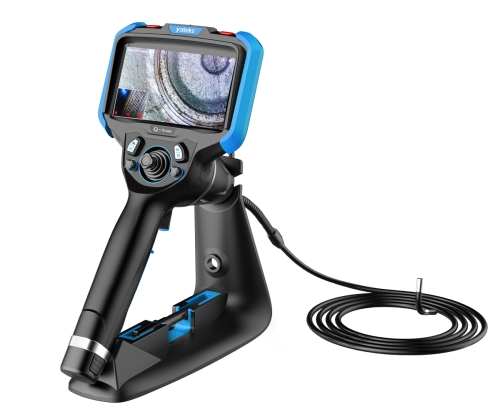

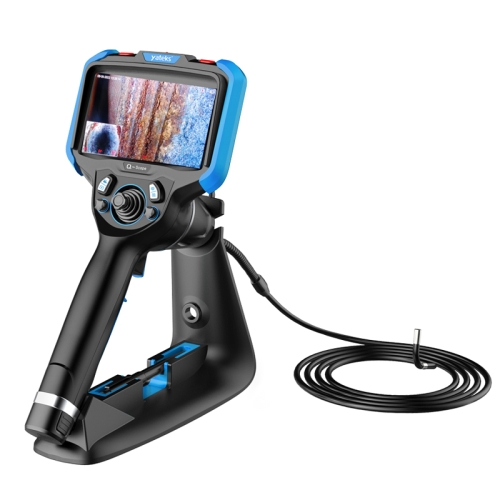

Q-Series HD Dual Camera Articulating Videoscopes
Small diameter 4-way Articulating HD Videoscopes
High definition, intelligent, convenient ——Q Series, adopting the latest digital high-definition image processing technology, with mega pixels and a 5.5-inch OLED big screen, to ensure clearer images. Even in strong sunlight, subtle defects can also be detected. In addition, this product adopts mechanical 360° rocker technology and replaceable insertion tube structure, with 2.8mm, 4mm & 6mm dual cameras. Users can choose any according to their needs. One base unit with multiple insertion tube options, customers can get the best combination at the best price to meet the needs of a variety of working conditions.
Features
5.5″ OLED touch screen, wider viewing angle, clearer display and more realistic colour reproduction; Even in strong sunlight, subtle defects can also be detected.
High-definition megapixels, new digital high-definition image processing technology, ultra-clear images

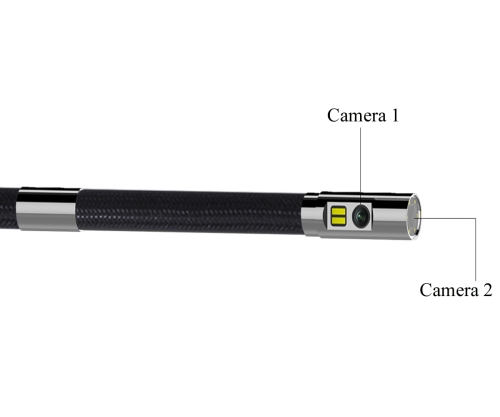

Interchangeable camera - forward, side view camera with white or UV light
Flexible articulation - mechanical 360° steering function, one-way articulation can be up to 220°
Probe has IP67 rating, can be submersed to 1 meter under water

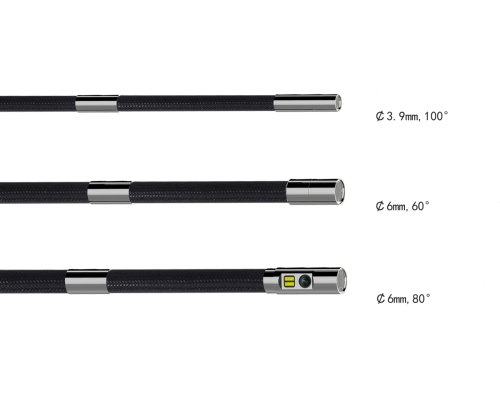

Replaceable insertion tube – tubes with different diameter & length & specs can be replaced to meet different onsite applications.
Stand structure - stand structure design, for long-term use, it can support the videoscope on a platform; otherwise, magnetic stand is also optional. In special cases, the instrument can be attached to a metal surface for convenience of inspection.
Multi-display function - image can be simultaneously displayed on videoscope, smartphone and TV with wire or without wire, which makes it convenient to be shared with multiple people.
Application
Power generation/ Automotive technology and transportation / Process industry / Aviation
Specification
PRODUCT DIMENSION 345*157*185
Weight 950g
Display screen 5.5″OLED touch screen
Screen resolution 1280*720
Image direction Rotate 180°, Mirror
Zooming in 10 levels, 2.5 times
Image colour Colour or Negative
White Balance Auto and Manual
Joystick control Mechanical rocker for 360°rotation
Automatic locking Automatic probe locking
Functions Photo/video recording, brightness control, locking
Audio Support earphone connection
Memory 32G (Max 128GB)
Data I/O port SD card port, HDMI video port, Type C charging port, USB port, software update port
Battery Two 18650 Lithium battery (Rechargeable)
Standby time 4h
Operation Mode Handheld portable
Brightness control 10 degrees brightness adjustment
External light White light,
Controlling Mode Two multi-function mini joysticks
Insertion tube material Tungsten-braided insertion tube
Camera articulation 0°to 180°
Bending angle 0° to180°
Effective pixels 45k to megapixels
Depth of Field(mm) See model no. list.
Angle of view See model no. list.
Front Camera 1280 x 720 pixels
Side Camera 1280 x 720 or 400 x 400 (see options below)
Software Operation system Real-time multitasking operating system
User interface Pop-up drive operation, menu navigation
File management Support photo or video playback, delete, format
Image Editing Zoom in, playback, editing, graffiti, renaming etc.
Photo format BMP, PNG, JPG
Video format AVI, MP4
Language En, CN, Kr, De, RU, JP
Colour settings Adjustable colour specifications
Exposure Adjustable exposure time
Measurement 2D comparison measurement
Software update Upgrade by SD card service pack
Operating Environment Monitor/Probe working temperature Monitor: -20~50° Probe: -20°~70°
Relative humidity 95%
Waterproof Probe IP67
Q Series HD Dual Camera 2.8mm to 6mm dia Articulating Videoscopes
- Product Code: Select from Options
-
£8,300.36
- Inc VAT £9,960.43
