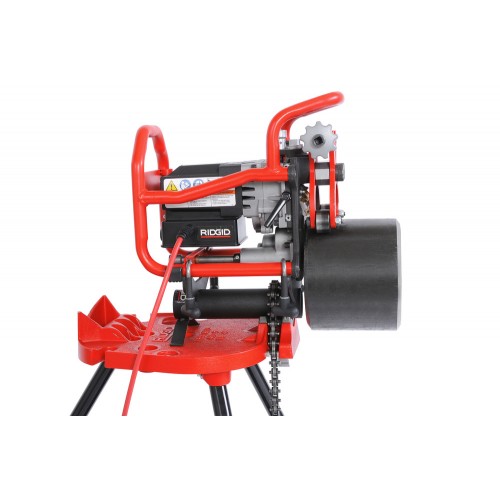

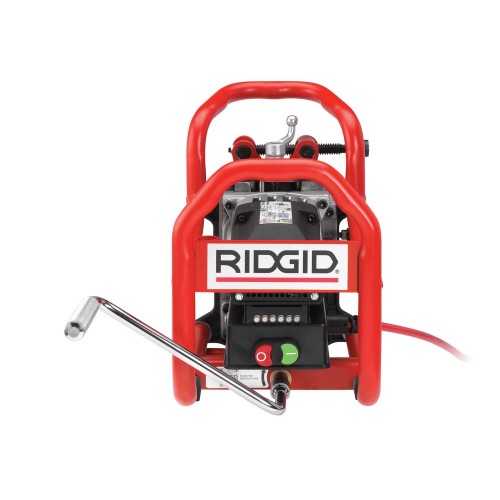

RIDGID B-500 Pipe Beveller

Mounts to 4" and upwards pipe

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.

*Timed on a 10” Schedule 40 Pipe.

FEATURES

Speed
Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
Pipe is cool to touch immediately following bevelling.

Consistency
 Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
 Adjustable land width from 0" to 3/16" to fit welders’ requirements.
Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity
 Fast to set-up and operate.
 Patent-pending clamp system firmly secures tool to the pipe.
Speed monitoring with led indicators for optimal cutter performance.
Spark free operation.

Available Options:

• Cat No 49303 - B-500 Pipe Beveller 230v
• Cat No 53543 - B-500 Pipe Beveller 110v

SPECIFICATIONS

Capacity    4” pipe and larger, flat plate.
Pipe Wall/ Plate Thickness    Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm).
 Bevel Angles    37.5° (Standard - Included); 30° and 45° (with Optional Cutter Heads).
Cutter Head    Rated for most steel & stainless steel*.
Size    15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
 Land Width    0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments.
 Motor Type    Universal single-phase.
Motor RPM    950 (no load).
 Body    Steel frame

* Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials.
